SilverStone Strider Gold S Series 750W

Written by Michael Larabel in Power Supplies on 11 January 2015. Page 2 of 3. 4 Comments

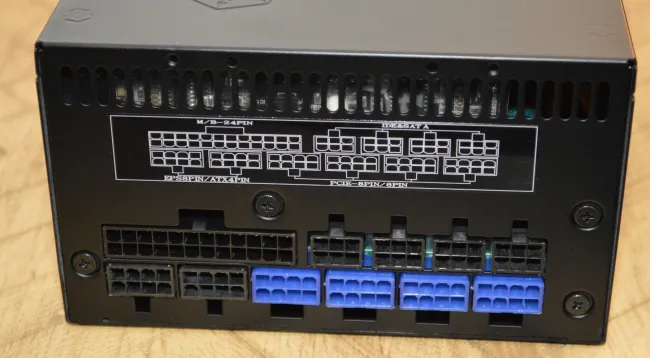

This SilverStone Strider Gold power supply features connections for one 24/20-pin motherboard, two 8/4-pin EPS/ATX12V motherboard, four 8/6-pin PCI Express, eight Serial ATA, six four-pin molex, and two 4-pin floppy connectors. The SATA connections are positioned every 150mm up to 600mm in length for the two cables and the motherboard leads are 550~750mm to ensure this small PSU can safely work out even for large ATX enclosures.

The cables -- including the motherboard leads -- are flat to allow for easy routing throughout the system case and easier organization and bundling of cables. These modular cables are similar to other modular SilverStone PSUs reviewed in the past and they've all worked out fine. Hooking up the necessary cables is very easy to do, as always.

The SST-ST75F-GS yields 62 Amps on its single +12V rail with a maximum power output of 744 Watts, 25A on the +5V rail, and 22A on the +3.3V rail.
