ASRock P43R1600Twins-WiFi & P45R2000-WiFi
Written by Michael Larabel in Motherboards on 21 September 2008. Page 2 of 9. Add A Comment

P45R2000-WiFi Features:

Processor
- LGA 775 for Intel Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium Dual Core / Celeron
- Supports Penryn Quad Core Yorkfield and Dual Core Wolfdale processors
- Compatible with FSB2000*/1600/1333/1066/800 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

Chipset
- Northbridge: Intel P45
- Southbridge: Intel ICH10R

Memory
- Dual Channel DDR3/DDR2 memory technology
- 4 x DDR3 DIMM slots
- Supports DDR3 1333/1066 non-ECC, un-buffered memory
- Max. capacity: 8GB
- 2 x DDR2 DIMM slots
- Supports DDR2 1066/800/667 non-ECC, un-buffered memory
- Max. capacity: 8GB

BIOS
- 8Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
- CPU, DRAM, NB, SB, VTT Voltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)

Audio
- 7.1 CH Windows Vista Premium Level HD Audio with Content Protection
- DAC with 110dB dynamic range (ALC890 Audio Codec)

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111B/RTL8111C
- Supports Wake-On-LAN
- Supports Dual LAN with Teaming function

Wireless LAN
- 54Mbps IEEE 802.11g / 11Mbps IEEE 802.11b
- Supports Software Access Point mode (AP mode) and Station mode (Infrastructure mode and Ad-hoc mode)

Expansion Slots
- Supports ATI CrossFire
- 2 x PCI Express 2.0 x16 slots (green @ x16 mode, blue @ x8 mode)
- 2 x PCI Express x1 slots
- 3 x PCI slots

Contents:

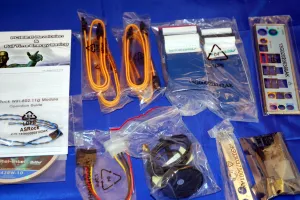

ASRock has never been a company to package more accessories with their motherboards than the average enthusiast would ever use, and they didn't start now. The P43R1600Twins-WiFi just includes four Serial ATA data cables, one 4-pin molex to SATA power adapter, 802.11g WiFi module with expansion slot bracket, 802.11g antenna, I/O panel, one ribbon FDD cable, one ribbon IDE cable, Windows driver CD, and a user's manual for the WiFi module and motherboard. The P45R2000-WiFi included the same accessories but with six SATA cables instead of four. The product packaging for these two motherboards are similar and the box has gone with the newer ASRock black theme than the rather generic cyan design we've been accustomed to in the past.
