Gigabyte AM1M-S2H

Written by Michael Larabel in Motherboards on 21 April 2014. Page 1 of 3. 16 Comments

The Gigabyte AM1M-S2H motherboard is an AMD AM1/FS1b motherboard that's sized for micro-ATX enclosures, offers a fine set of budget features, and costs just over $30 USD.

The Gigabyte AM1M-S2H is obviously designed for the just-launched AMD Athlon and Sempron APUs we have been covering a lot on Phoronix the past two weeks. This ~$30 motherboard features Gigabyte's UEFI BIOS, Ultra Durable Technology, multi-display support, USB 3.0 connectivity, Gigabit Ethernet, and other modern features.


- FS1b AMD Athlon and Sempron processors

- 2 x 1.5V DDR3 DIMMs
- 32GB Maximum Memory Capacity
- Support For DDR3-1600/1333MHz memory
- Support for Extreme Memory Profiles (XMP)

Onboard Graphics
- VGA D-Sub
- Maximum Shared Memory Of 2GB

- Realtek ALC887
- HD Audio
- 2/4/5.1/7.1 Channel Audio
- S/PDIF Out support

- Realtek Gigabit LAN

Expansion Slots
- 1 x PCI Express x16 slot, at PCI-E x4
- 2 x PCI Express x1 slots

- 2 x Serial ATA 6 Gb/s

- 2 x USB 3.0/2.0 ports on the back panel
- 8 x USB 2.0/1.1 ports

I/O Controller
- iTE I/O controller chip

- 32 Mbit Flash

Form Factor
- Micro ATX
- 22.6 x 17.0 cm

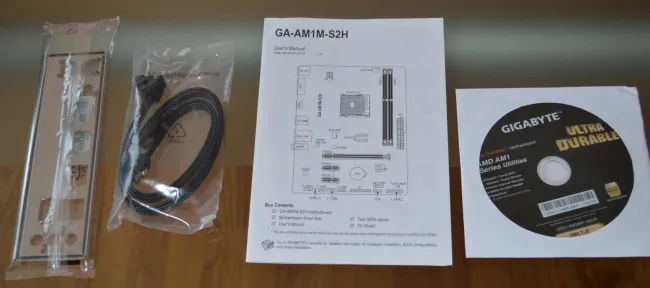

Included with the micro-ATX AM1 motherboard was the I/O back panel, two Serial ATA connectors, and Gigabyte driver CD.

The AM1M-S2H is likely the shortest desktop motherboard user's manual I have ever seen... It covers all the essential information and with a $30 motherboard it's justifiable to not see a lengthy manual for this basic motherboard.
