Announcing radeontop, a tool for viewing the GPU usage

[amdg]

help!!!

God job!
I am an openGL newbie and need your help.
svPerfGL (http://vis.lbl.gov/Research/svPerfGL/) is a Scientific Visualization OpenGL Graphics Benchmark using deprecated technique such as
display list. I altered the source. After stored the vertexes, normals and colors in VBOs, I found the FPS descend from 210 (use display list)
to 120 (did not use display list) with newest AMD catalyst. Here is the readeontop result:

1. display list

2，no display list


The two results are almost the same but differ in event engine and pf_rq_pending. I wonder what event engine and pf_rq_pending mean? By the way,
I add cf_rq_pending, pf_rq_pending, cp_coherency_busy, cp_busy all by myself, but do not know what they stand for. Can anybody give me a hand?
Thanks!

[profoundWHALE]

God job!
I am an openGL newbie and need your help.
svPerfGL (http://vis.lbl.gov/Research/svPerfGL/) is a Scientific Visualization OpenGL Graphics Benchmark using deprecated technique such as
display list. I altered the source. After stored the vertexes, normals and colors in VBOs, I found the FPS descend from 210 (use display list)
to 120 (did not use display list) with newest AMD catalyst. Here is the readeontop result:

1. display list

http://d.pcs.baidu.com/thumbnail/6a7405ad18e20611c00f78d80a6fd605?fid=3542278631-250528-286301998249742&time=1409101200&sign=FDTAER-DCb740ccc5511e5e8fedcff06b081203-wmlUZHwRuW%2F8eG4UVWCmEJymRtk%3D&rt=sh&expires=2h&r=620937299&sharesign=unknown&size=c710_u500&quality=100

2，no display list

http://d.pcs.baidu.com/thumbnail/7dd19141ca5cba4d3d0c54e44c89756d?fid=3542278631-250528-1020966106899491&time=1409101200&sign=FDTAER-DCb740ccc5511e5e8fedcff06b081203-wZDNK5O%2BkLniBgIFsiz4FjYM5h4%3D&rt=sh&expires=2h&r=211544109&sharesign=unknown&size=c710_u500&quality=100

The two results are almost the same but differ in event engine and pf_rq_pending. I wonder what event engine and pf_rq_pending mean? By the way,
I add cf_rq_pending, pf_rq_pending, cp_coherency_busy, cp_busy all by myself, but do not know what they stand for. Can anybody give me a hand?
Thanks!

I hate to tell you this, but I think you're a forum newbie. You just tried to attach images that were really just links (that expire) to a pages with the images.

God job!

Also, what the heck? I think you meant, "Good day!"

[bridgman]

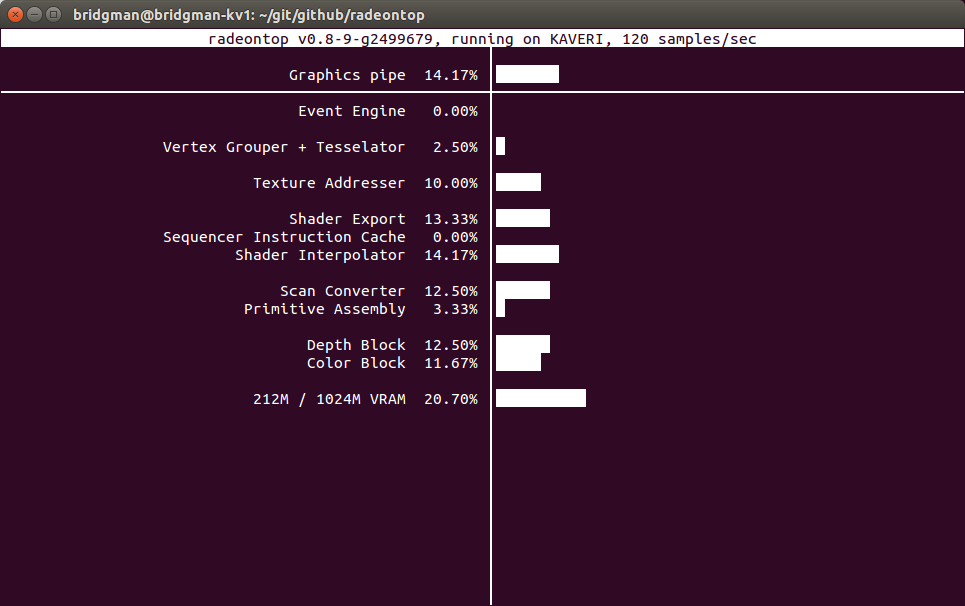

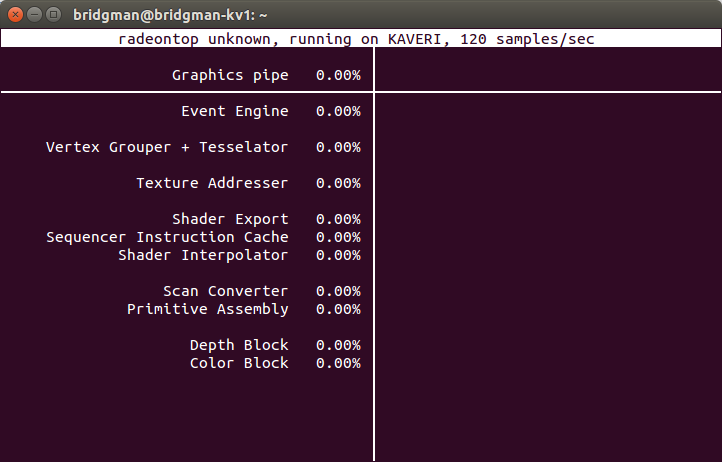

Has anyone tried the radeontop package from Ubuntu 14.04 ? When I install the package it doesn't work (see first image) but if I build from source it works fine. Obvious difference is that version information is "unknown" on the package install.

[agd5f]

Has anyone tried the radeontop package from Ubuntu 14.04 ? When I install the package it doesn't work (see first image) but if I build from source it works fine. Obvious difference is that version information is "unknown" on the package install.

CI parts use a different BAR for MMIO. Older versions of the tool were not aware of that. I've been meaning to add a debugfs or ioctl interface to query these registers so you won't have to add as much asic specific info to the tools.

[bridgman]

CI parts use a different BAR for MMIO. Older versions of the tool were not aware of that. I've been meaning to add a debugfs or ioctl interface to query these registers so you won't have to add as much asic specific info to the tools.

Whoops, you're right -- CI support went into radeontop just *after* 14.04 was baked. I saw the missing version info and was thinking "broken" not "old". Thanks !

[curaga]

Guys, I've gotten multiple requests for 285/tonga but can't do anything until there is support in libdrm and kernel. Any news, will it be released this year? :P

[bridgman]

Guys, I've gotten multiple requests for 285/tonga but can't do anything until there is support in libdrm and kernel. Any news, will it be released this year? :P

There's a lot of work going on to finish the IP reviews and get final approval for public release, hopefully in the next couple of weeks but there's not much useful that we can say in the meantime...

... although I can say with confidence that it will be released this year

If it makes you feel any better, the HSA team is in the same boat as you -- we need to decide whether to strip Carrizo support out of the next HSA stack release since it depends on amdgpu, and since nearly all of the hardware-specific code in the KFD was moved across to the radeon and amdgpu graphics drivers over the last 6 months.

[curaga]

Everyone with Tonga, Topaz, or Carrizo gpu, please test master. Support was added but I have no such hw. When reported working I can release 0.9.

[curaga]

v0.9 tagged. Release highlights: Fresh PCI IDs for Mullins, Tonga, Carrizo, Topaz, support for all cards >= bonaire, avoids interfering with X if started before it, small UI tweaks, and support for the new kernel interface in 4.1 which may allow running without root permissions.

[myxal]

Curaga, if you're still here - is running without X supported? I'm getting all-zeroes on HD8400 (Athlon 5350 APU, Kabini) with latest git on Ubuntu 14.04 (kernel 3.16, libdrm 2.4.60, fglrx-core from repository 15.200).
